Multi-layer circuit membrane switch

Short Description:

A multi-layer circuit membrane switch is a type of membrane switch that is composed of several layers of materials, each with a specific purpose. It usually contains a layer of polyester or polyimide substrate that serves as the base for the switch. On top of the substrate, there are several layers that include a top printed circuit layer, an adhesive layer, a bottom FPC circuit layer, an adhesive layer, and a graphic overlay layer. The printed circuit layer contains conductive paths that are used to detect when a switch has been activated. The adhesive layer is used to bond the layers together, and the graphic overlay is the top layer that displays the switch’s labels and icons. Multi-layer circuit membrane switches are designed to be durable and reliable, making them ideal for use in a wide range of applications, including medical devices, consumer electronics, appliances, and industrial equipment. They offer benefits such as a low profile, customizable design, and ease of use, making them a popular choice for electronic devices.

Product Detail

Product Tags

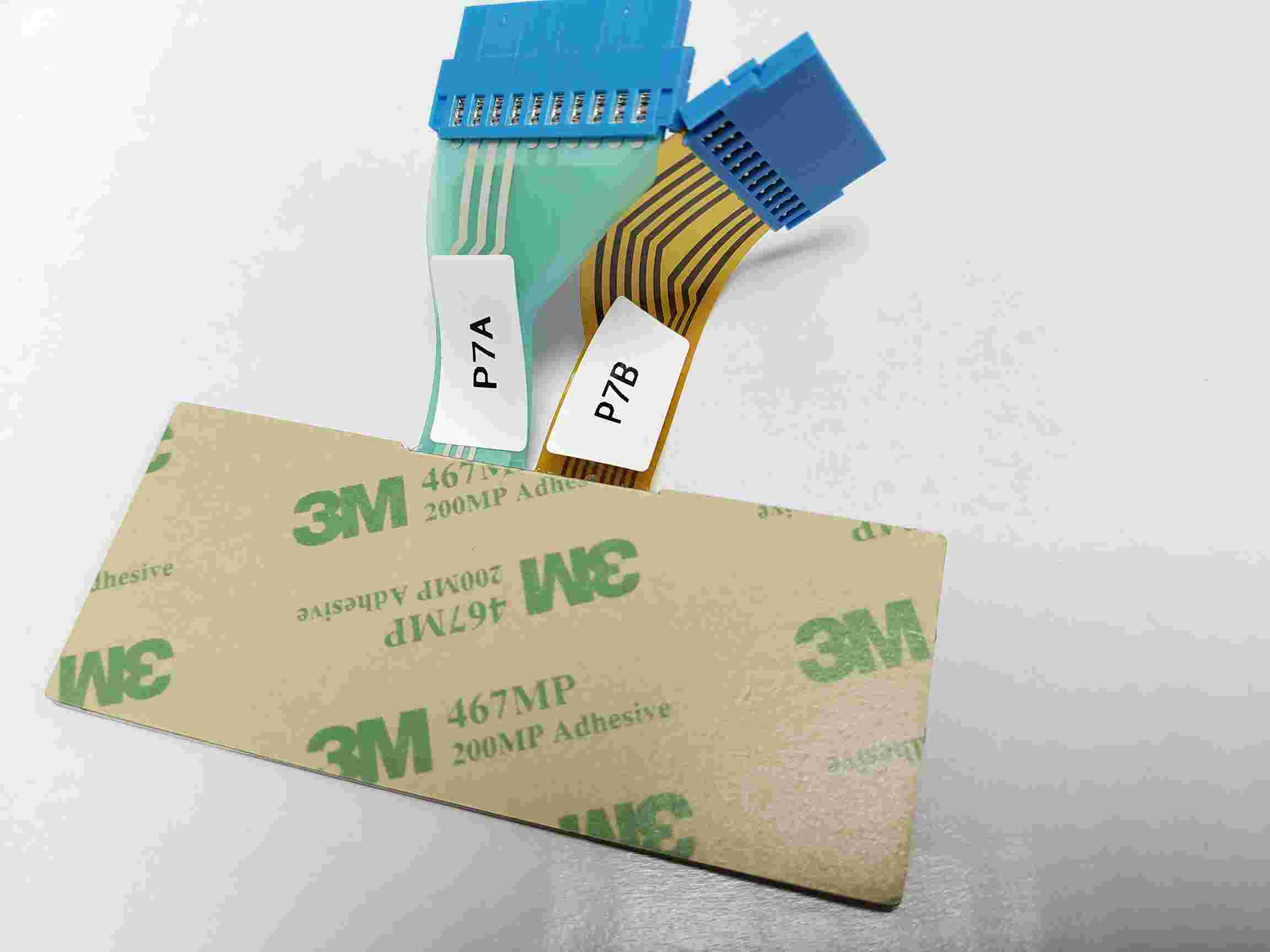

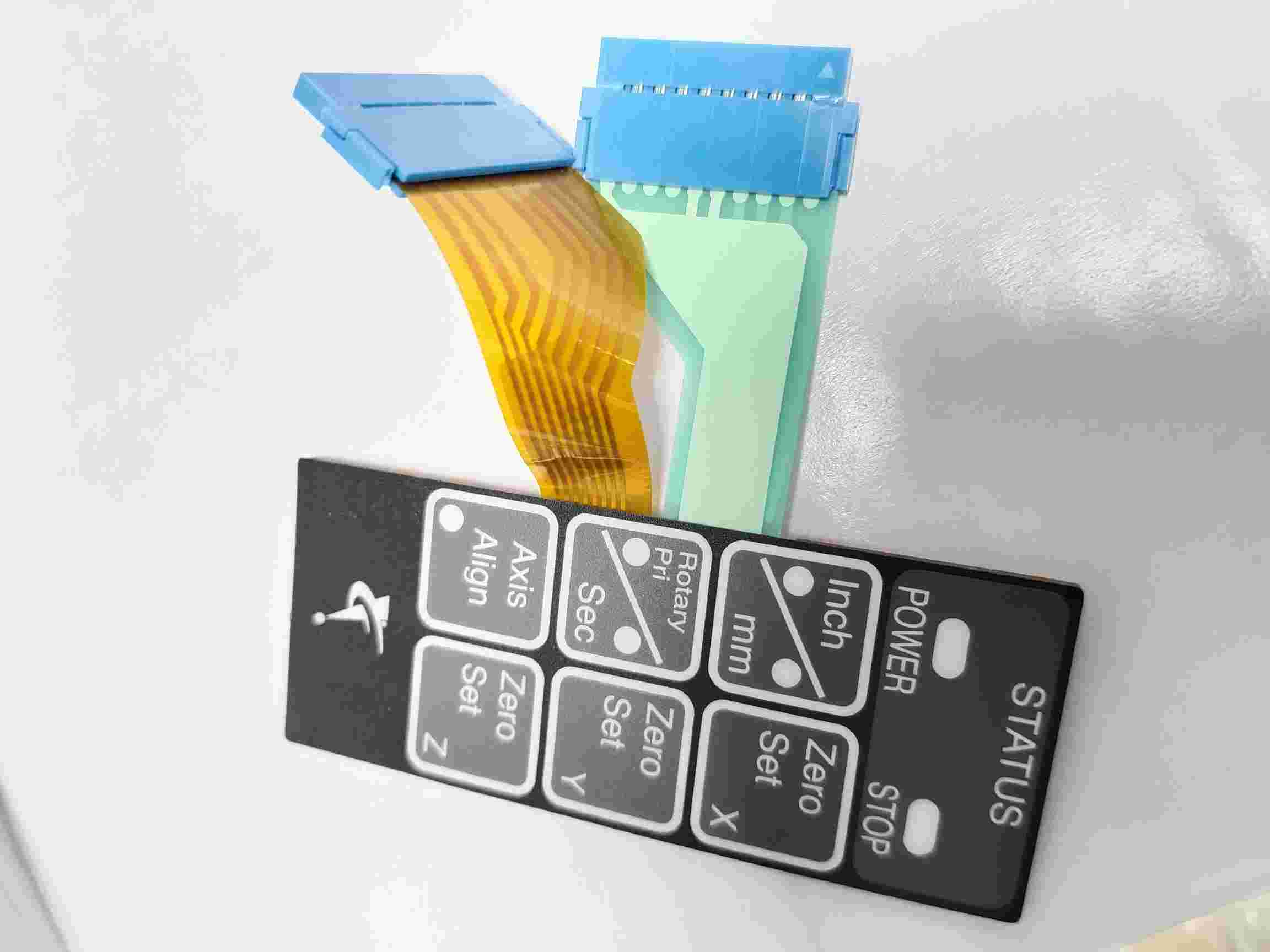

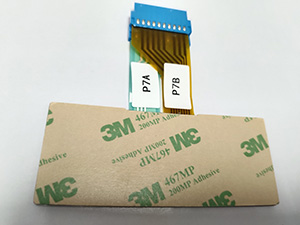

This membrane with silver circuit and the FPC circuit design.

This silver printing polyester circuit is a cost effective and long lasting solution for your circuit needs. It features a simple production process that makes it suitable for all environments. It can be used for a variety of applications and is designed to provide reliable performance over time. Its silver printing technology ensures that it is highly durable and resistant to corrosion. It is easy to install and maintain, making it a great choice for all your circuit needs.

For the FPC circuits, it's is a high quality, corrosion-resistant product that features low loop resistance, good stability, and complex circuit routings. It is designed to provide reliable performance and long-term durability in demanding applications. Its low loop resistance ensures low power consumption and improved efficiency, while its good stability ensures consistent operation. Its corrosion-resistant properties make it ideal for use in harsh environments. Additionally, its complex circuit routings allow for the creation of intricate designs. This FPC Circuit is the perfect solution for your circuit needs.
