PCB circuits membrane switch

Short Description:

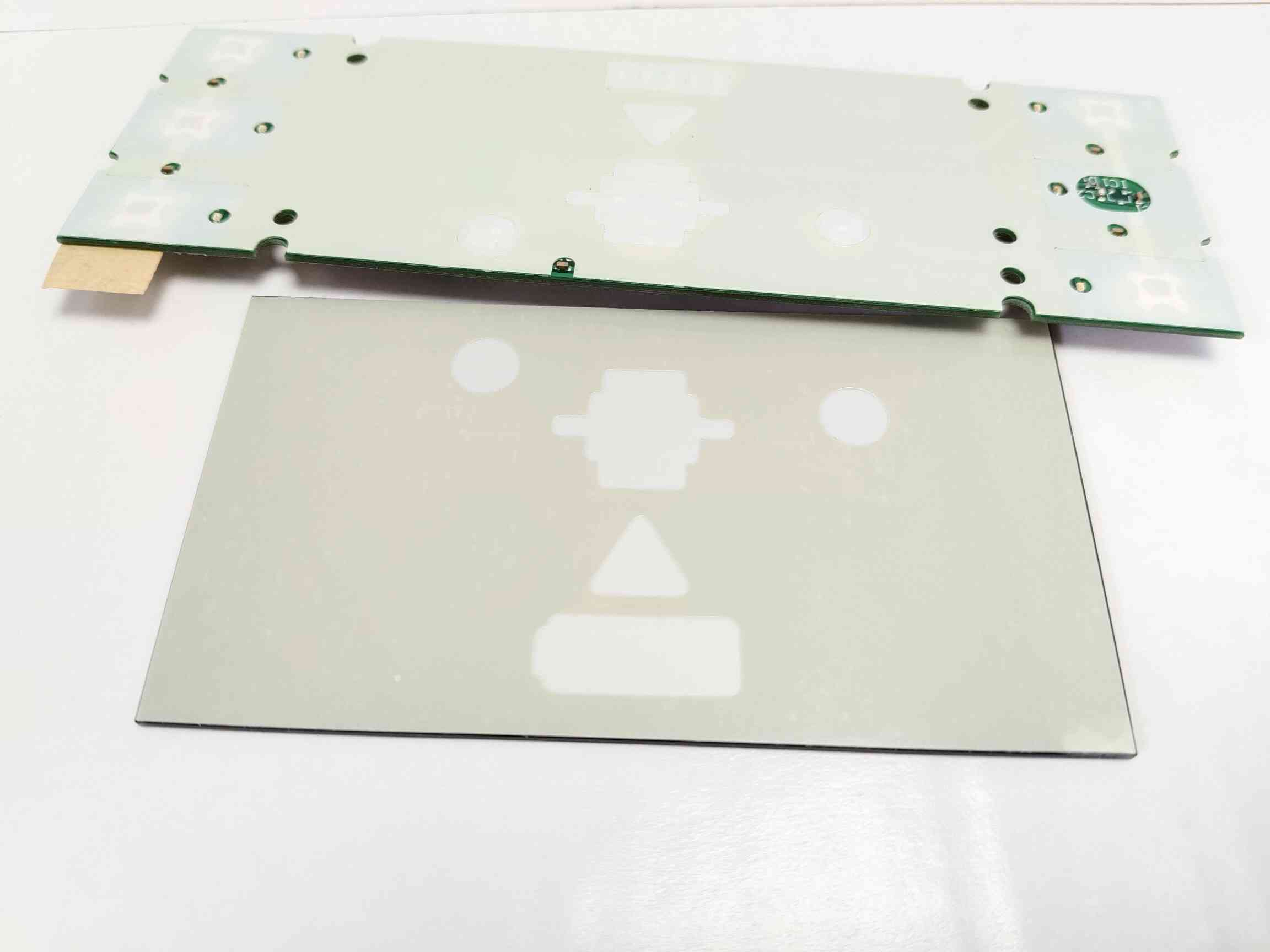

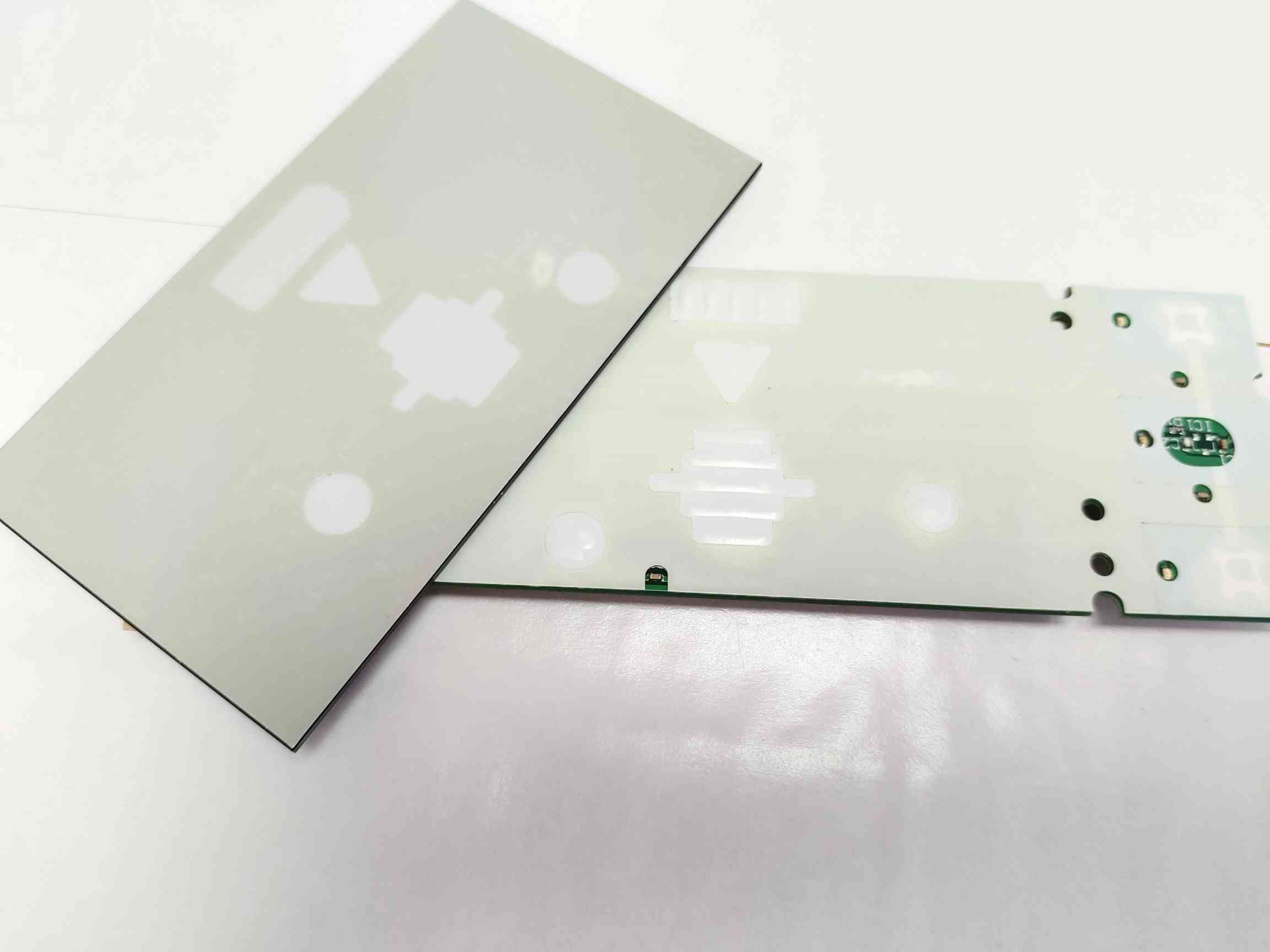

A PCB (Printed Circuit Board) membrane switch is a type of electronic interface that uses a thin, flexible membrane to connect and operate different circuit components. These switches are composed of multiple layers of material, including printed circuits, insulating layers, and adhesive layers, all configured to form a compact switch assembly. The basic components of a PCB membrane switch include a PCB board, a graphic overlay, and a conductive membrane layer. The PCB board serves as the base for the switch, with the graphic overlay providing a visual interface that indicates the various functions of the switch. The conductive membrane layer is applied over the PCB board and acts as the primary switch mechanism by providing a physical barrier that activates the various circuits and sends signals to the corresponding devices. The construction of a PCB membrane switch is typically very durable and long-lasting, making them ideal for use in a wide variety of applications, from consumer electronics devices to medical equipment and industrial machinery. They are also highly customizable, with the ability to create custom layouts and designs, and can be further customized with additional features like LEDs, tactile feedback, and more.

Product Detail

Product Tags

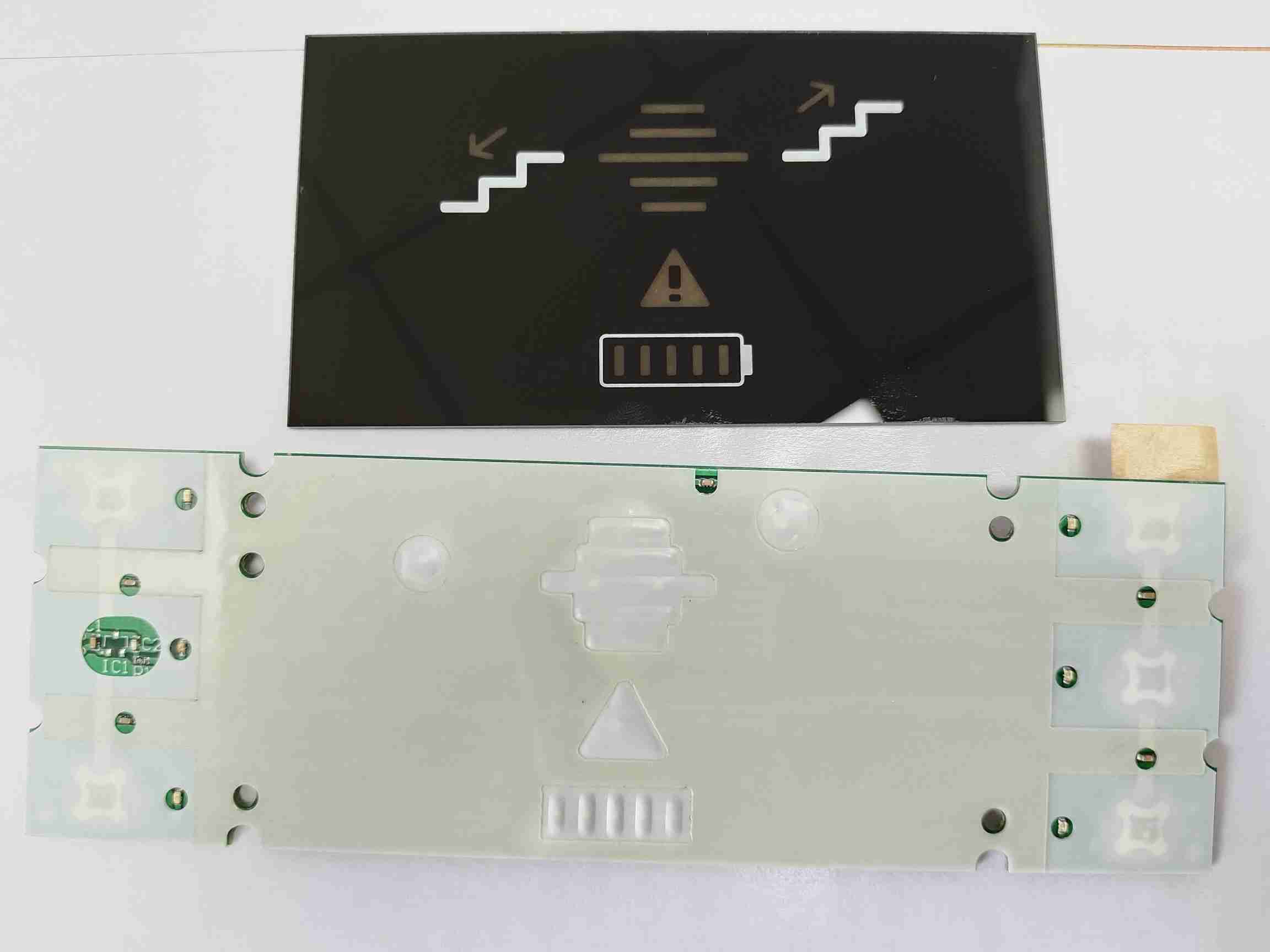

This PCB circuits product is the perfect solution for your electrical needs. Featuring metal domes, lighting diffuser, LGF plate, LEDs, resistors, and sensors, it provides a reliable and efficient circuit board for your projects. Its robust design ensures a long-lasting and durable performance, while its compact size makes it ideal for tight spaces. This product is perfect for a wide range of applications, from automotive to industrial, and is sure to provide you with the highest quality performance. With its easy installation and maintenance, this PCB circuits product is the perfect choice for your electrical needs.

PCB circuits are the perfect solution for complex circuit needs. Featuring mature craftsmanship, these circuits are suitable for a wide variety of environments and boast low resistance and a long lifetime. With superior engineering and quality components, PCB circuits are the perfect choice for any project.
