PCB combine FPC membrane circuit

Short Description:

PCB-based Flexible Printed Circuit (FPC) technology is an advanced circuit design methodology where a flexible circuit is printed on a thin and flexible substrate, such as plastic or polyimide film. It offers several advantages over traditional rigid PCBs, such as better flexibility and durability, greater printed circuit density, and reduced cost. PCB-based FPC technology can be combined with other circuit design methodologies like membrane circuit design to create a hybrid circuit. A membrane circuit is a type of circuit that is made using thin and flexible layers of material such as polyester or polycarbonate. It is a popular design solution for applications that require low profile and high durability. Combining PCB-based FPC technology with membrane circuit design helps designers to create complex circuits that can adapt to various shapes and forms without losing their functionality. The process involves bonding the two flexible layers together using an adhesive material, allowing the circuit to remain flexible and resilient. The combination of PCB-based FPC technology with membrane circuit design is often used in a variety of applications such as medical devices, consumer electronics, industrial equipment, and automotive components. The benefits of this hybrid circuit design methodology include improved performance, reduced size and weight, and increased flexibility and durability.

Product Detail

Product Tags

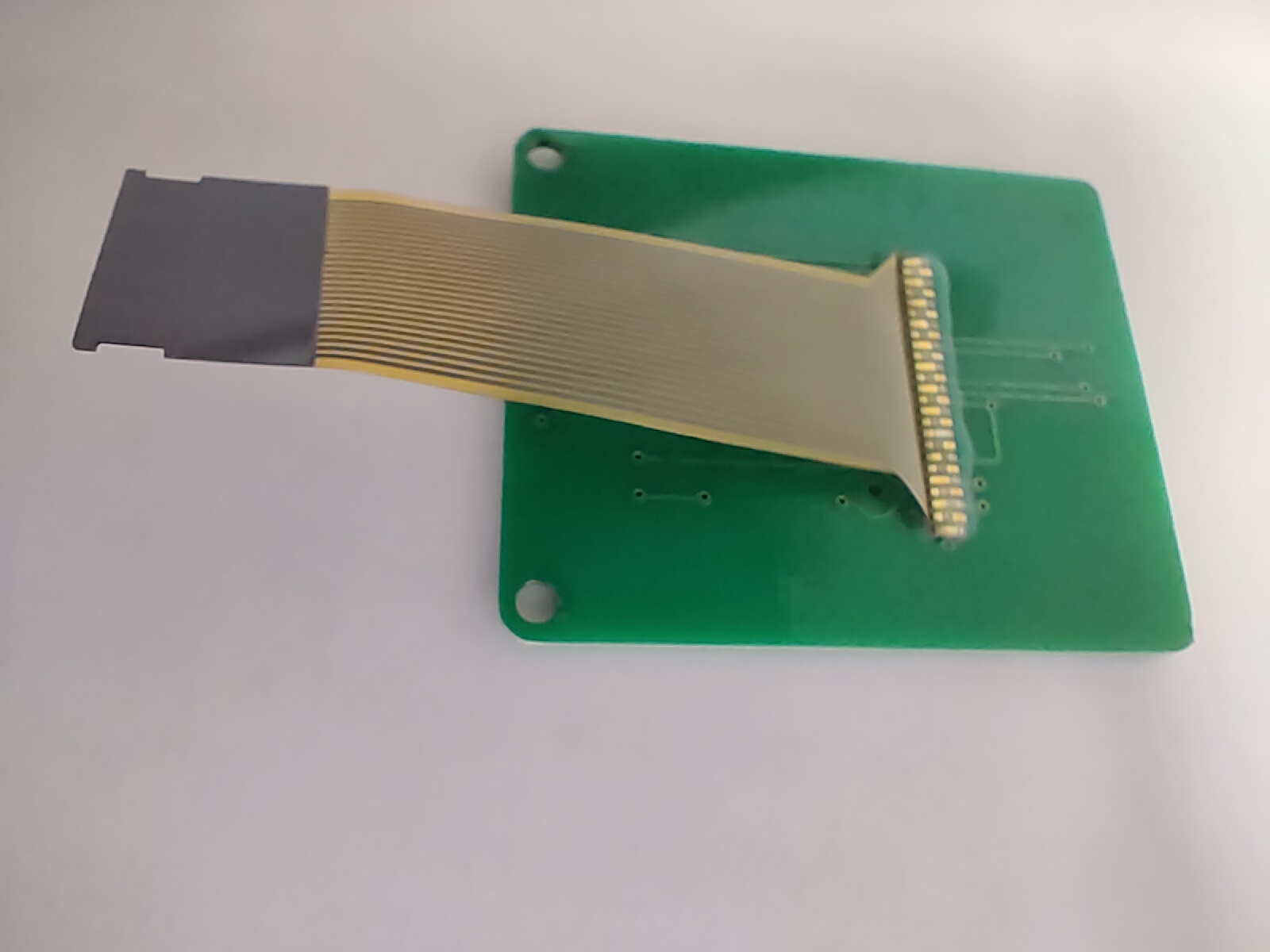

This membrane switch is a perfect solution for PCB circuits, FPC circuits, and FPC solder to the PCBs contacts pads. It utilizes the latest Hot bar process technology for a reliable connection and comes with a tail stiffener for additional stability. This switch is highly durable and offers a long-lasting performance. It is also easy to install and maintain, making it an ideal choice for any project. With its advanced features and reliable construction, this membrane switch is sure to provide a great experience.

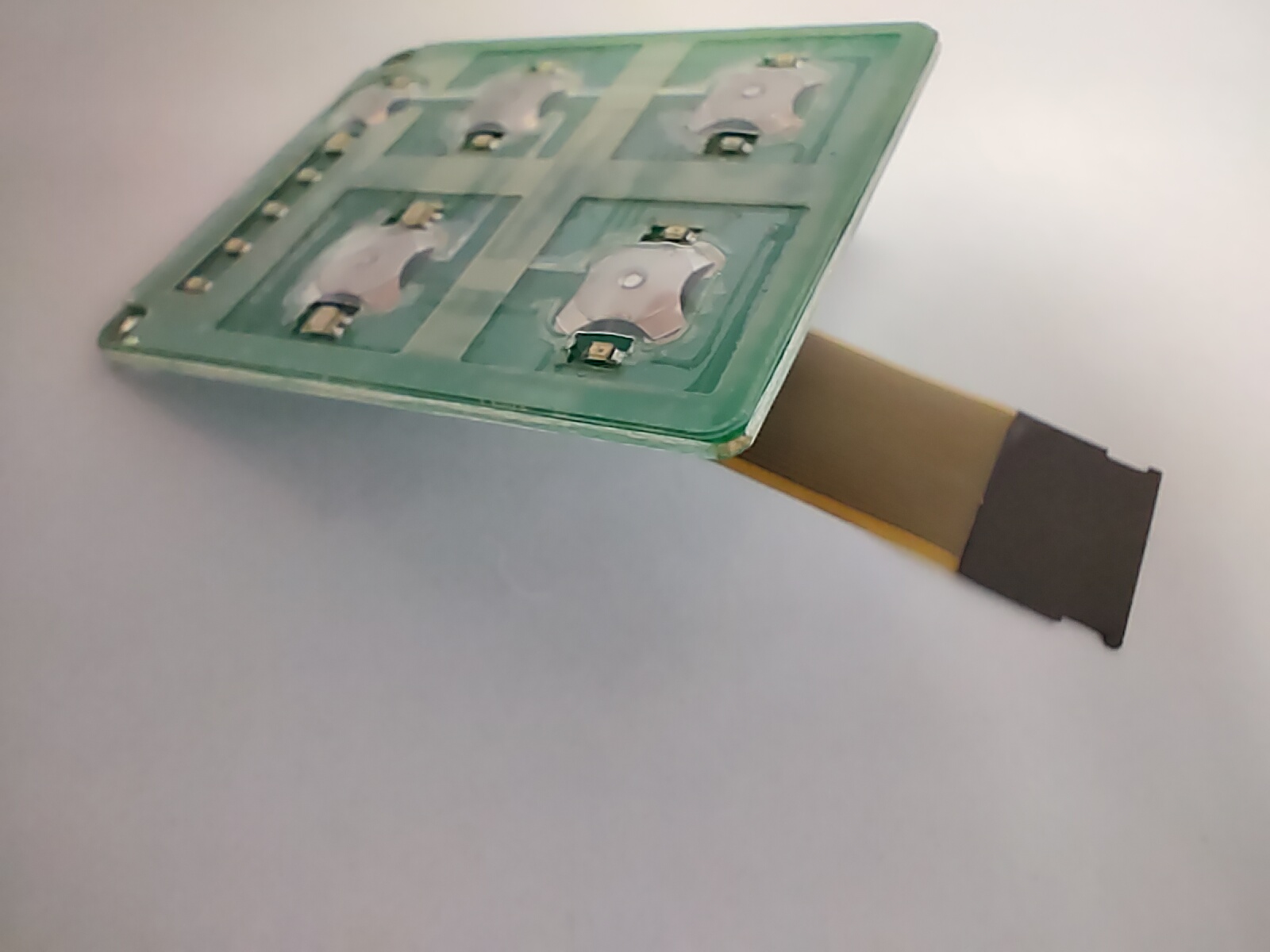

This PCB circuit is perfect for any project requiring a reliable and durable design. It features metal domes switches, which provide a tactile response when pressed and make it easier to use. Additionally, the circuit is equipped with LEDs assembly, providing an attractive visual display. It is a great choice for any electronic project needing a reliable and long-lasting PCB circuit.
